Regenerative_Turbine_Pumps
Base-mounted_model
Stainless steel, high pressure for process application (Max. 1.4 MPa)

Regenerative_Turbine_Pumps Base-mounted_model Stainless_steel

SN

High pressure stainless steel regenerative turbine pump

Applications

General industrial applications
Pure water and chemical liquid supply
Washing solvent supply, suitable for filtration applications

Features

No metal contact between the impeller and the casing and cover, eliminating wear and reducing contamination.
Simple robust structure with minimal consumable parts, suitable for processes requiring high reliability.
Due to selection of material combinations (SUS304 / PTFE / SiC) can target variety of applications.
Very low noise levels silimar to centrifugal pump, additional noise reduction measures not required.

Performance

Specification Data

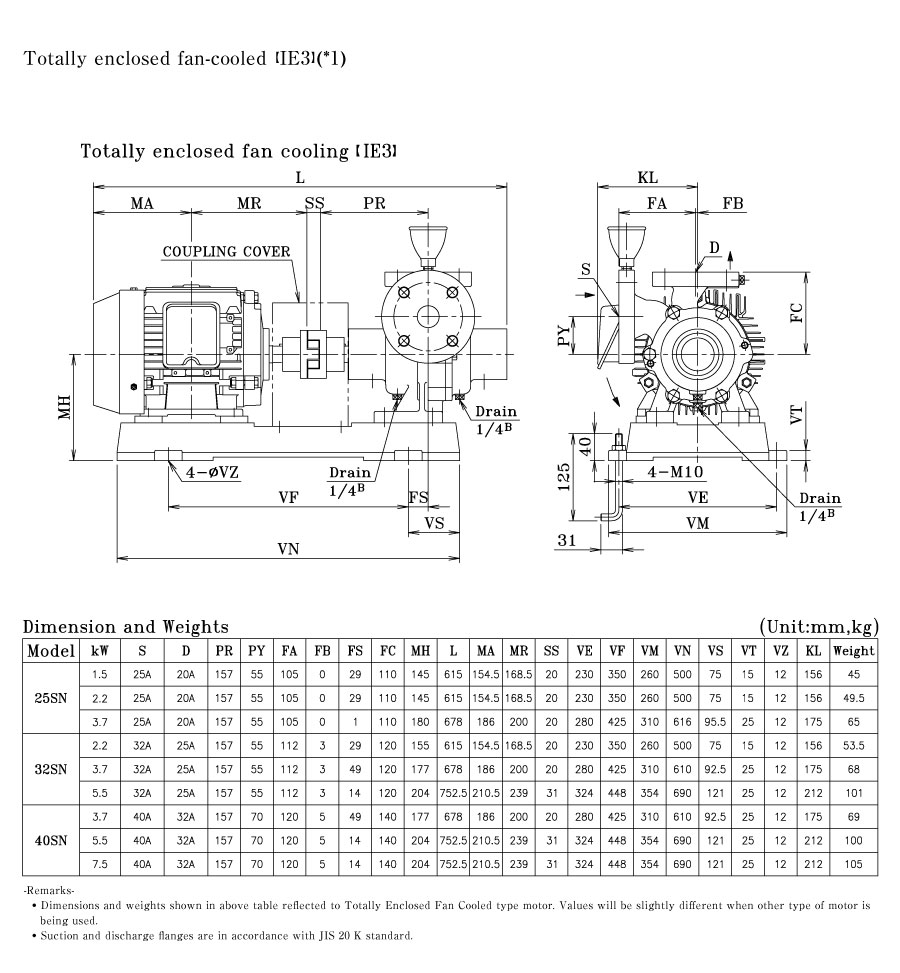

Dimensions
