Regenerative_Turbine_Pumps
Base-mounted_model
Stainless steel, super clean model

Regenerative_Turbine_Pumps Base-mounted_model Stainless_steel

JL

Super clean regenerative turbine pump

Applications

General industrial cleaning applications
Transferring pure water
Food and beverage, pharmaceutical and medical applications
Transferring chemical liquid
Can be coupled with various types of motor

Features

Prevent contamination due to the compact size and simple structure of these pumps.
Regenerative turbine pumps achieve high pressure using a single stage impeller even without high speed rotatio.
The contact area between the pump and media is minimized resulting in a clean flow.
Due to the simple structure with minimal holding volume and surface contact area bacterial contamination is minimized as well as reduced leaching of irons from metal parts to ppm levels.
SiC x special carbon mechanical seal (-J) available  for pure water (low-viscosity liquid) application.

Performance

Specification Data

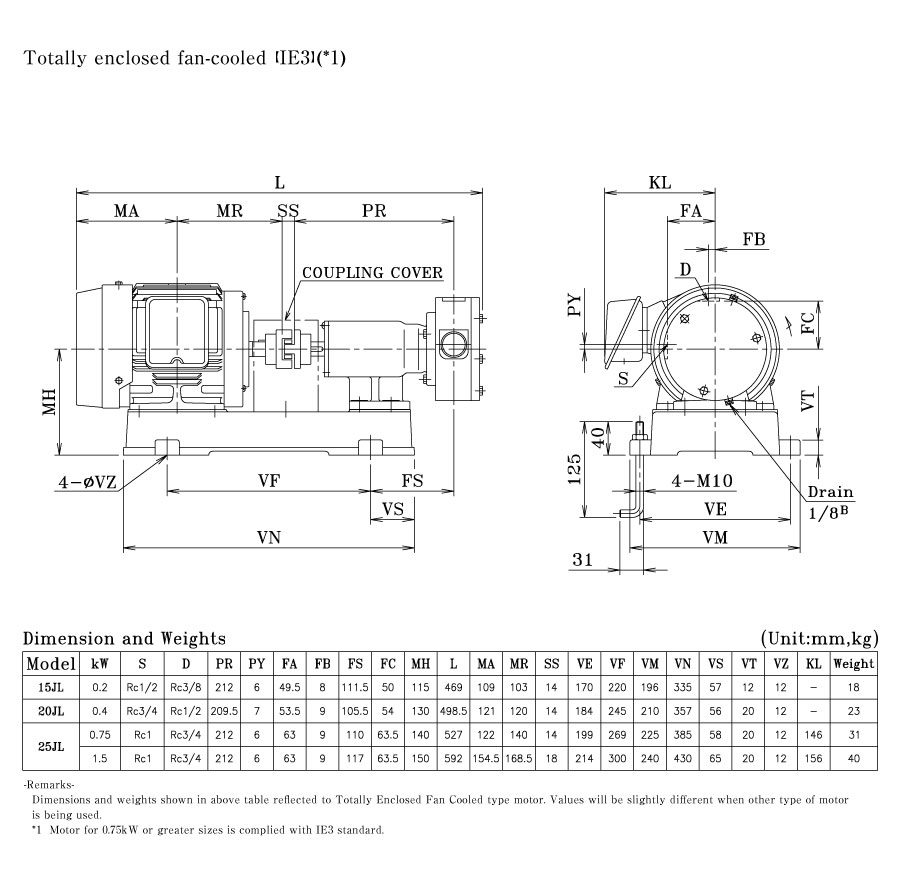

Dimensions
