3D Mixing
Efficient mixing by repeatedly dividing and merging in axial and radial directions

Applications

Applications
  • Mixing gases or liquids.
  • Bubbles dispersion in liquids.
  • Dilution, concentration adjustment, pH adjustment.
  • Mixing gases with large flow or concentration differences.

Apllication examples
  • Gas Mixing
Gas concentration adjustment, production of shielding gases for welding process, etc.
  • Liquid Mixing
Dilution of chemicals, production of cleaning water, wastewater treatment, dilution and dispersion of concentrated materials, etc.
  • Gas-Liquid Mixing
Steam mixers, aeration, hot water production, etc.

Features

  • High mixing capability
Complex flow paths are formed by the staked mixing elements repeatedly dividing and merging, which enables efficient and high mixing capability.

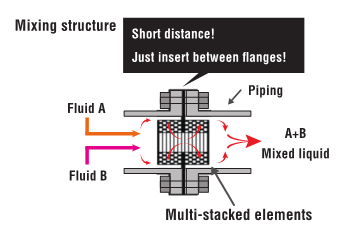

  • Enables mixing with short piping distance
Easily installed by screwing into pipes (Nipple Mixer) or inserting between flanges (Ring Mixer).
Request the catalog , technical data

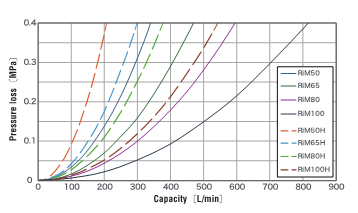

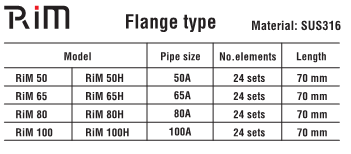

Performance


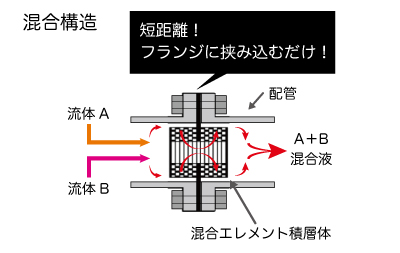

Structure and Mechanism

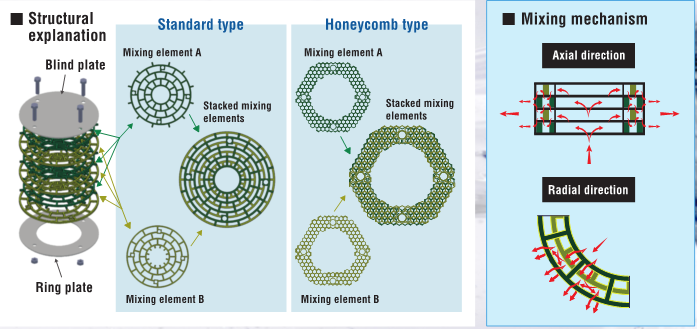

  • Two types of differently shaped mixed elements stacked alternately, tucked with blind plate and ring plate create complex flow paths in both axial and radial directions.
  • Supplied fluids repeatedly divide and merge through these flow paths, efficiently demonstrating high stirring capacity due to generated turbulence and vortices.

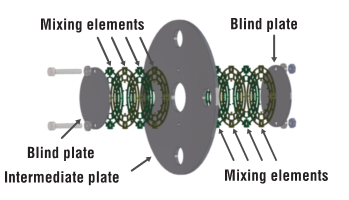

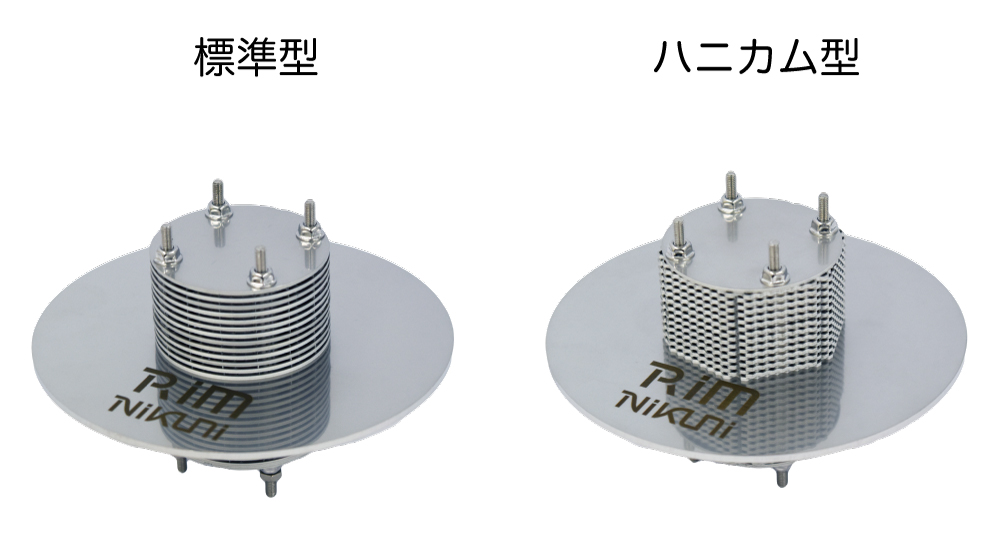

Structural components

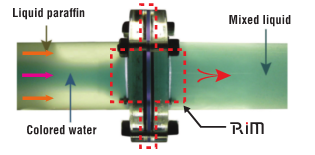

Visualization of Water-Immiscible Liquid Mixing
