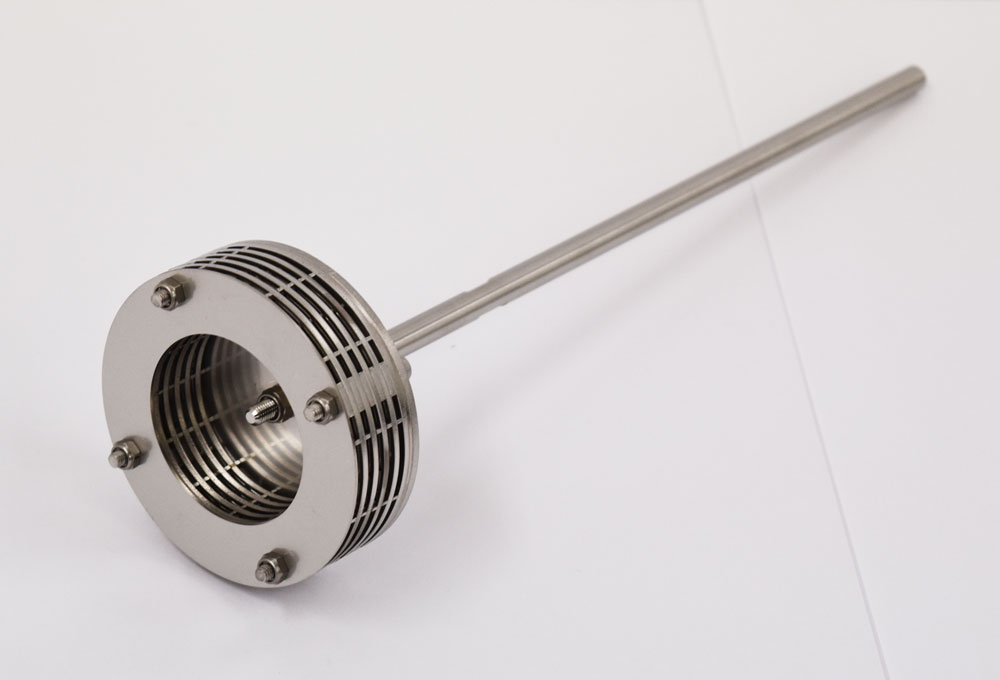

RaM

High stirring performance, with less bubbles foaming and shearing

Applications

■Applications for stirring while suppressing foaming
　and gas entrainment
■Applications for particle lifting mixing
■Applications for gas entrainment mixing
■Applications for mixing in reaction systems

Features

Uniform stirring by dividing and merging fuids in the wings

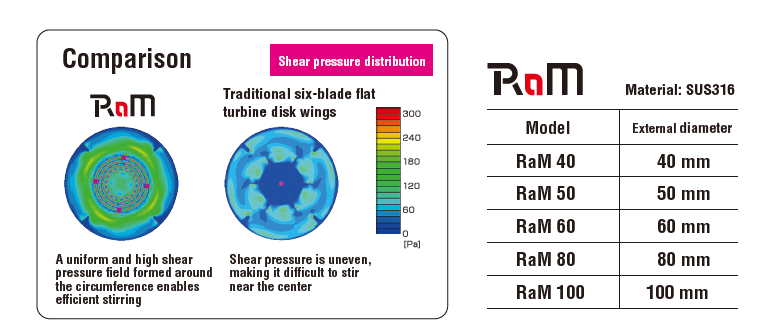

Minimal change in liquid quality even with prolonged stirring due to no shear force

Capable of diverse stirring such as particle lifting or gas suction, etc

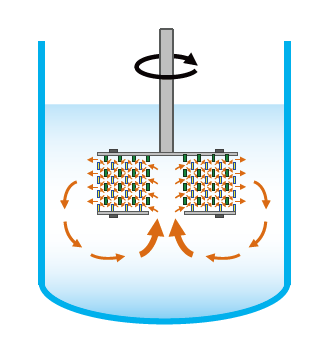

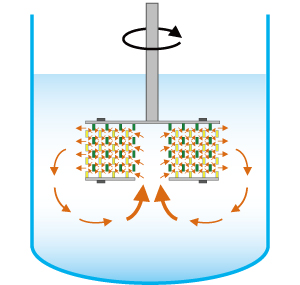

Due to the flow that sucks in from the lower part of the shaft center and discharges outward, the entire container can be stirred evenly.

Request the catalog , technical data

Movies

Details

Principal

Two types of differently shaped mixing elements stacked alternately, tucked with blind plate and ring plate create complex fow paths in both axial and radial directions.
Supplied fuids repeatedly divide and merge through these flow paths, effciently demonstrating high stirring capacity due to generated turbulence and vortices.

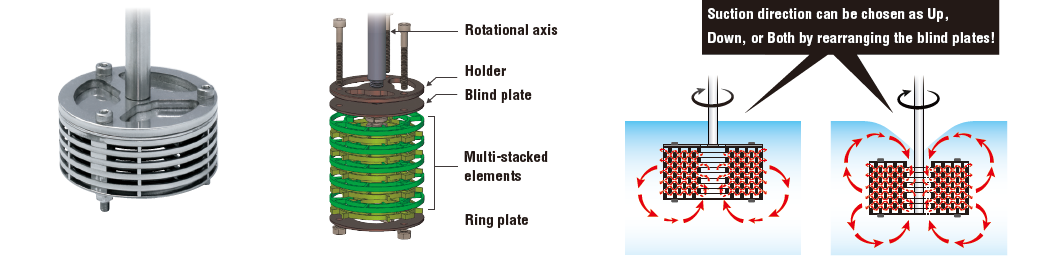

Structure

By changing the installation position of the blind plate, the suction direction can be altered.
This allows for various types of mixing, such as particle lifting and gas entrainment
